Inclinometers
Portable Digital Inclinometer System
The Inclinometers are designed for precise measurement of lateral deflections within boreholes. This system is engineered to be robust and accurate, ensuring reliable performance in various site conditions.
- Bluetooth Enabled: Seamless cable-free data transmission between the inclinometer and a smart phone.
- Biaxial Probe: Incorporates MEMS-based accelerometers for high precision.
- Graduated Cable Reel: Allows for accurate depth measurement upto 100m.
- Android Software Integration: Data acquisition and analysis through a dedicated app on a smart phone.
- Inhouse Calibration facility.
| Probe gauge length | 500mm |
|---|---|
| Probe diameter | 25.4mm |
| Calibrated ranges | ±30° |
| Resolution | 0.005mm [0.0002”] |
| Sensor accuracy | ±0.05% full scale (±0.1mm) |
| Operating temperature | 20 to +70°C |
| Repeatability | ±0.005% full scale |
| Connectivity | Bluetooth© 4.1 |
| Weight | 30 metre – 10kg |
| Battery Usage | 40 hrs of continuous use |

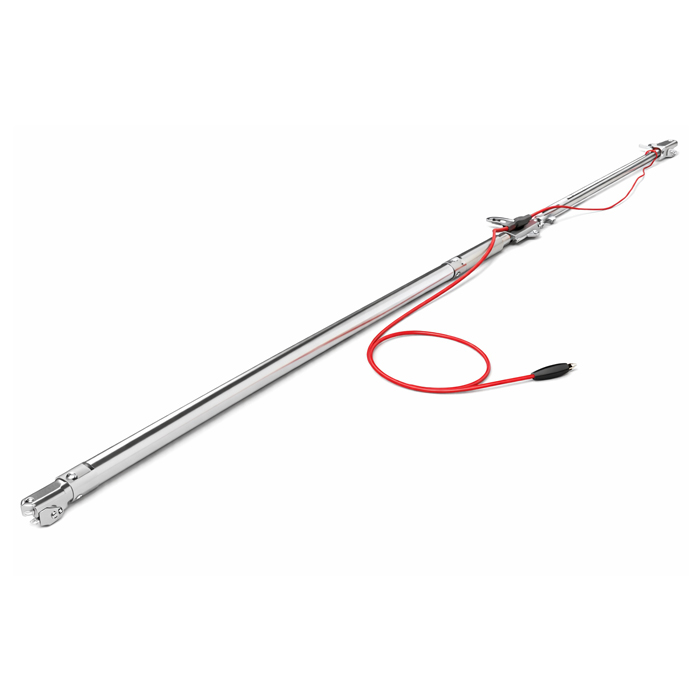

In-Place Inclinometer
This system provides real-time data to detect and analyze ground or structure movement, ensuring safety and stability.
- Modular Design: The system consists of multiple inclinometer sensors connected in series along a single borehole, allowing for customizable installation depth.
- High Precision Sensors: Equipped with MEMS-based accelerometers, the system delivers accurate tilt measurements to monitor even the slightest ground movements.
- Continuous data collection and real-time monitoring are made possible through advanced data loggers and communication systems.
| Measurement Range | ±15°, ±30° |
|---|---|
| Accuracy | ±0.5 |
| Temperature Range | −20°C to +70°C |
| Communication Wired or wireless options available | 0.005mm [0.0002”] |

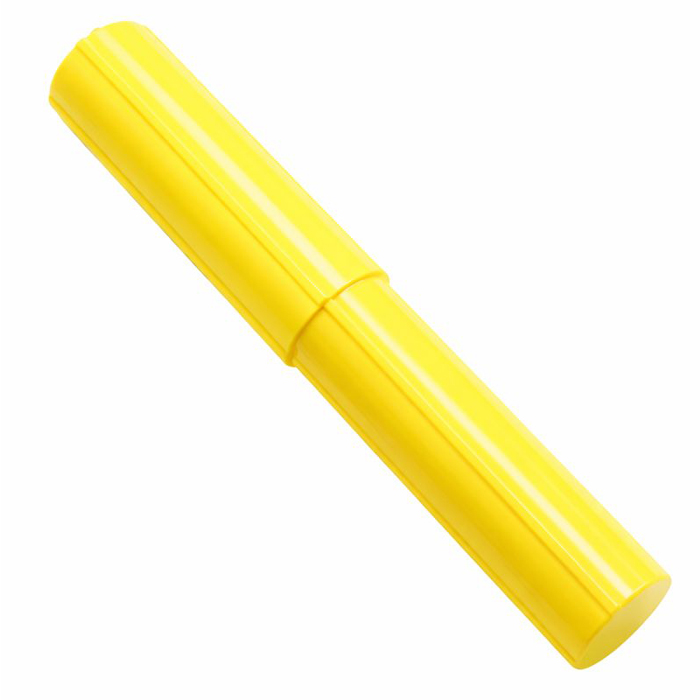

Inclinometer Casing
Inclinometer Casing is a critical component used in geotechnical and structural monitoring to measure lateral movement and deformation in soil, rock, and structures. Installed in boreholes, this durable casing provides a secure guide for inclinometer probes, ensuring precise and reliable readings of subsurface movements. Designed with precisely machined grooves to guide the inclinometer probe accurately, ensuring high-quality data collection.
| Material | ABS plastic for superior strength. |
|---|---|
| Length | Available in 3-meter sections. |
| Groove Design | Precision grooves at 90-degree intervals for accurate inclinometer probe guidance. |
| Fixed Coupling | ABS, 77 mm OD, 160 mm long. |
| Top and Bottom Caps | ABS. |
